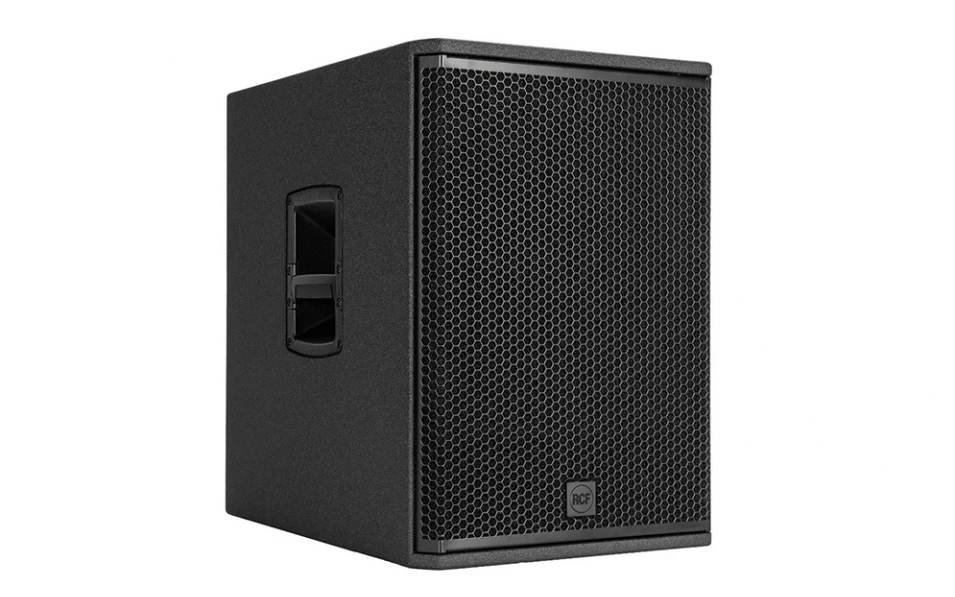

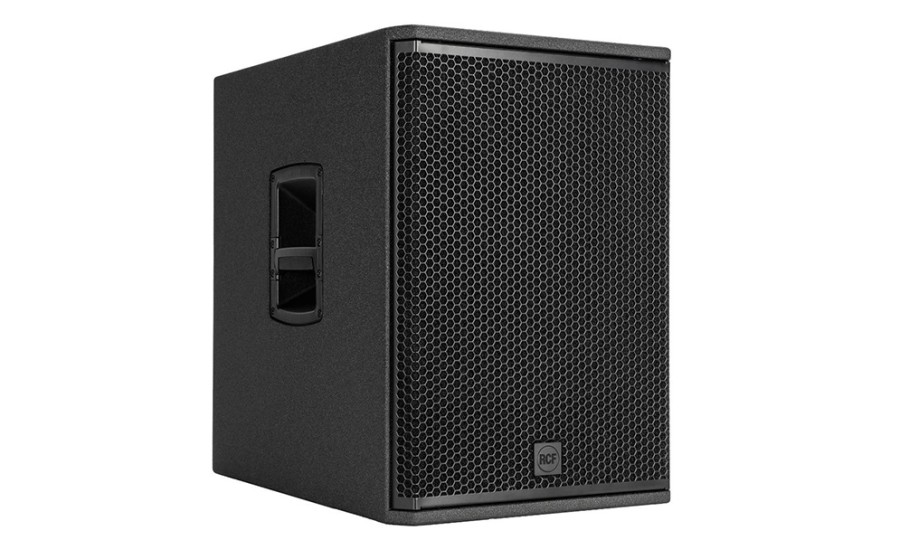

RCF SUB 705-AS MK3

• 1400 Watt Class-D Amplifier
• 1400 W Peak, 700 W RMS
• 15” Woofer, bass reflex housing
• Stereo Crossover
• Switchable Crossover Frequencies
• Polarity-reverse switch
• Electronic equalization, soft limiter and protection
• Stereo XLR input, Stereo XLR signal output
• Bass Motion Control excursion management

Acoustical Specifications

Frequency Response: 40 Hz ÷ 120 Hz

Max SPL @ 1m: 131 dB

Transducers

Woofer: 15'', 3.0'' v.c

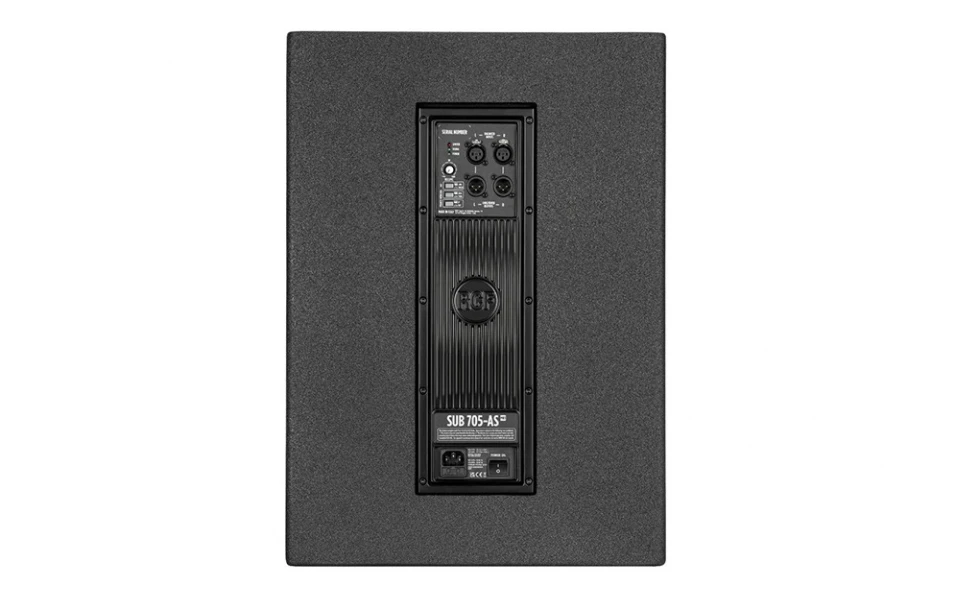

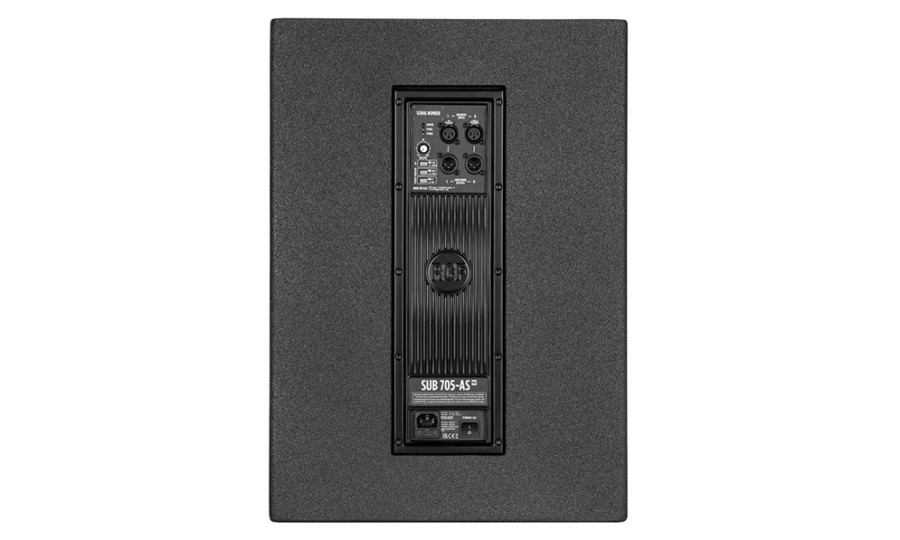

Input/Output Section

Input signal: bal/unbal

Input connectors: XLR

Output connectors: XLR

Input sensitivity: -2 dBu/+4 dBu

Processor Section

Hi-Pass Frequencies: 110 Hz

Low-Pass Frequencies: 80 Hz

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Volume, EQ, Phase, Xover

Power Section

Total Power: 1400 W Peak, 700 W RMS

Low frequencies: 1400 W Peak, 700 W RMS

Cooling: Convection

Connections: VDE

Standard Compliance

Safety agency: CE compliant

Physical Specifications

Cabinet/Case Material: Baltic birch plywood

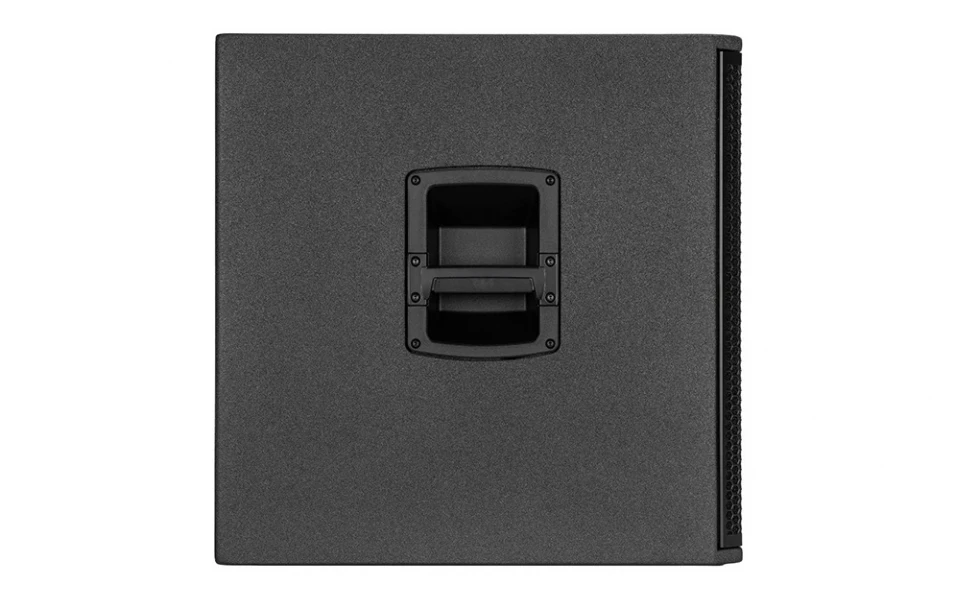

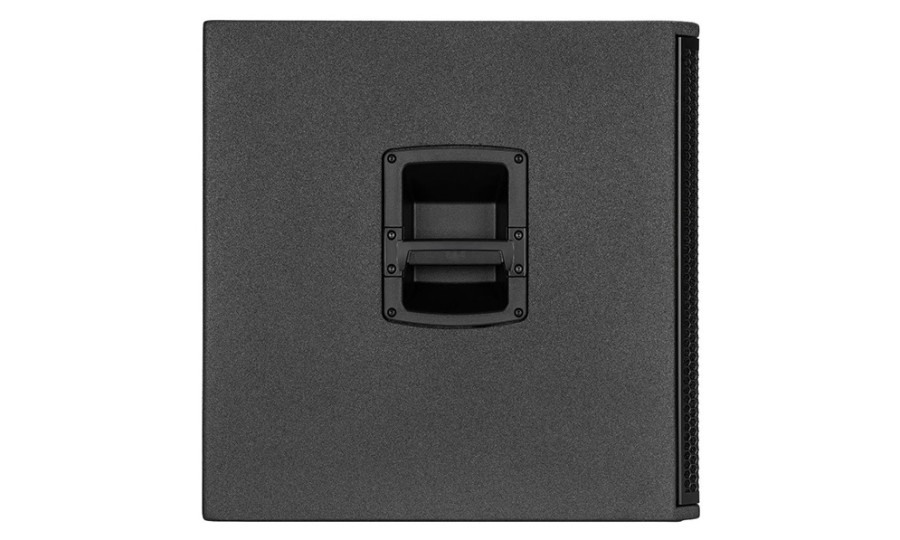

Handles: One each side

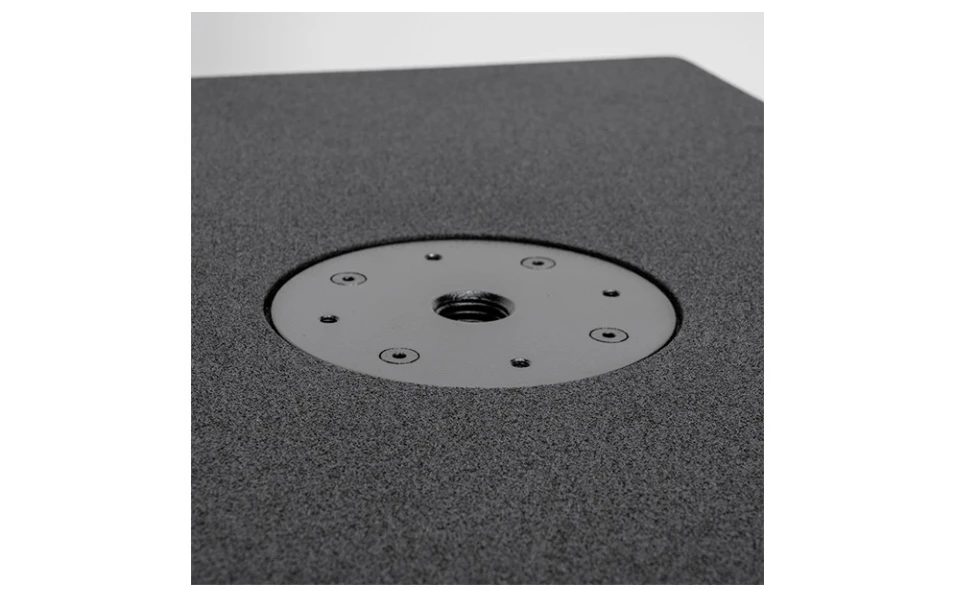

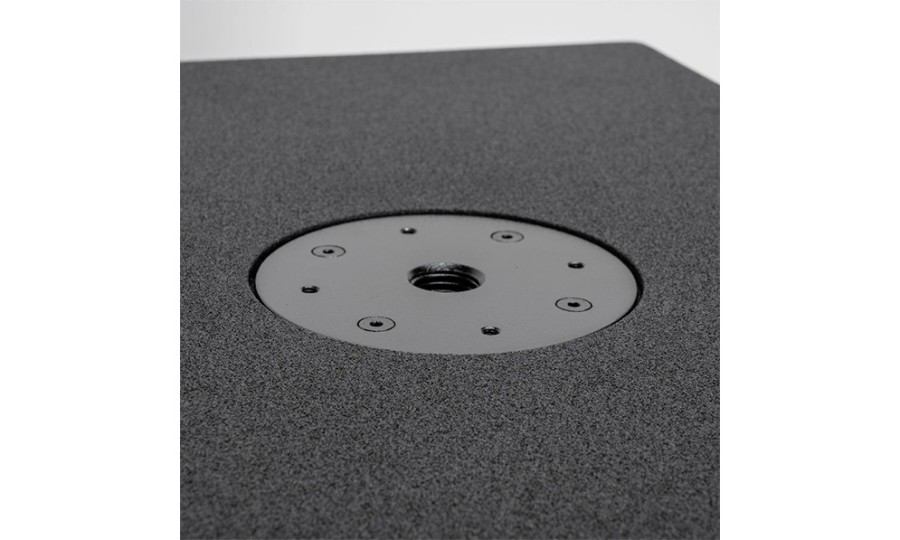

Pole mount/Cap: Yes

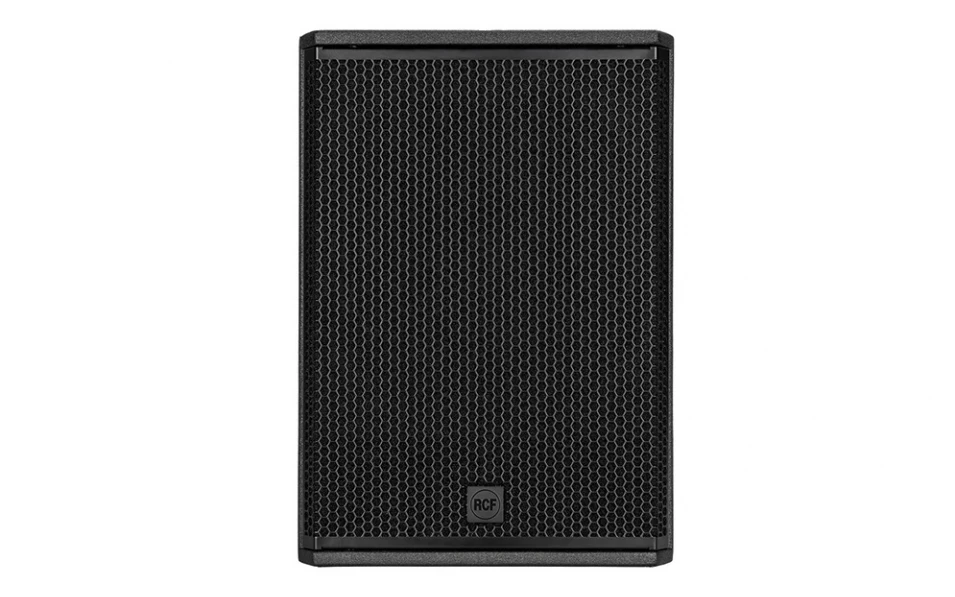

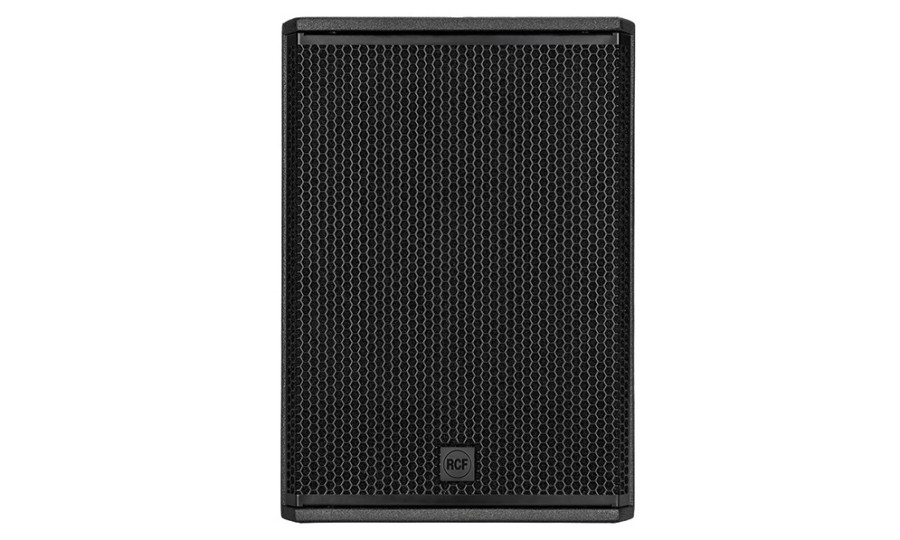

Grille: Steel with clothing

Colour: Black

Size

Height: 598 mm / 23.54 inches

Width: 420 mm / 16.54 inches

Depth: 590 mm / 23.23 inches

Weight: 27.5 kg / 60.63 lbs

Shipping Information

Package Height: 648 mm / 25.51 inches

Package Width: 638 mm / 25.12 inches

Package Depth: 478 mm / 18.82 inches

Package Weight: 32.4 kg / 71.43 lbs
