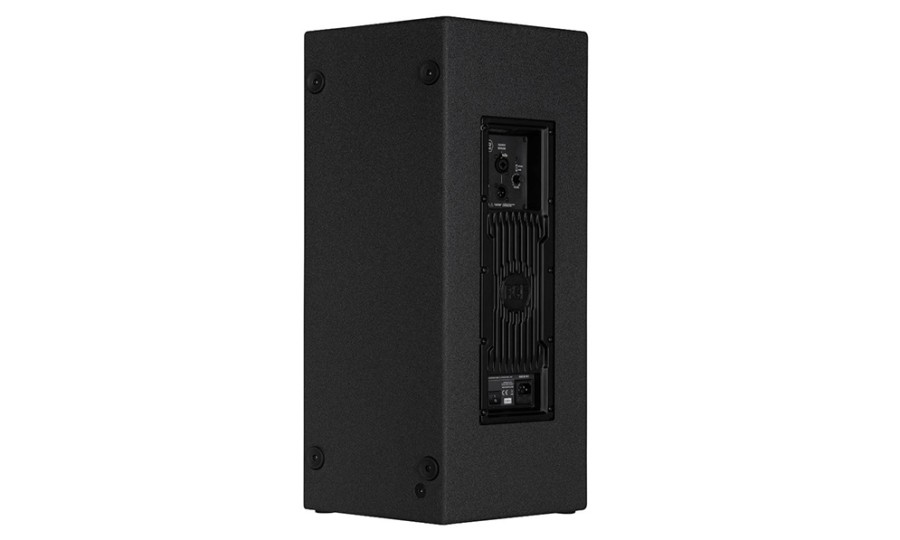

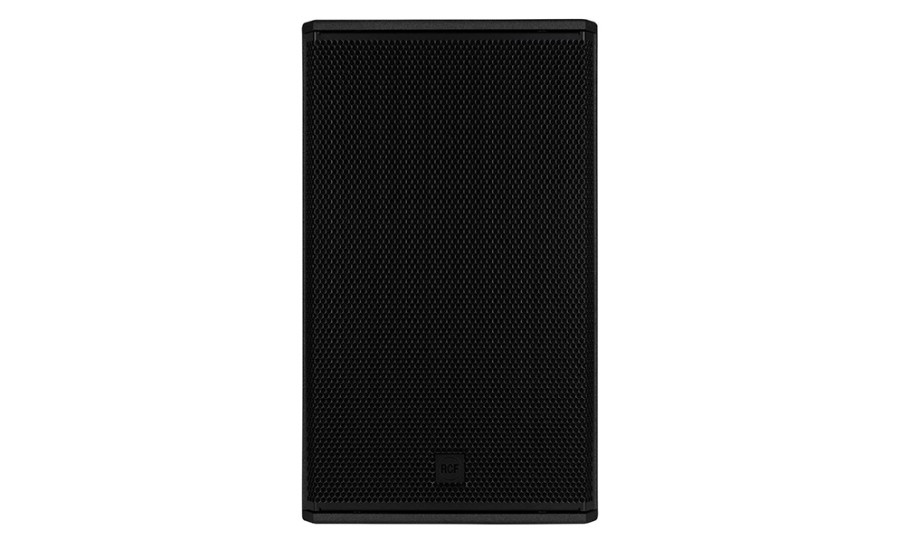

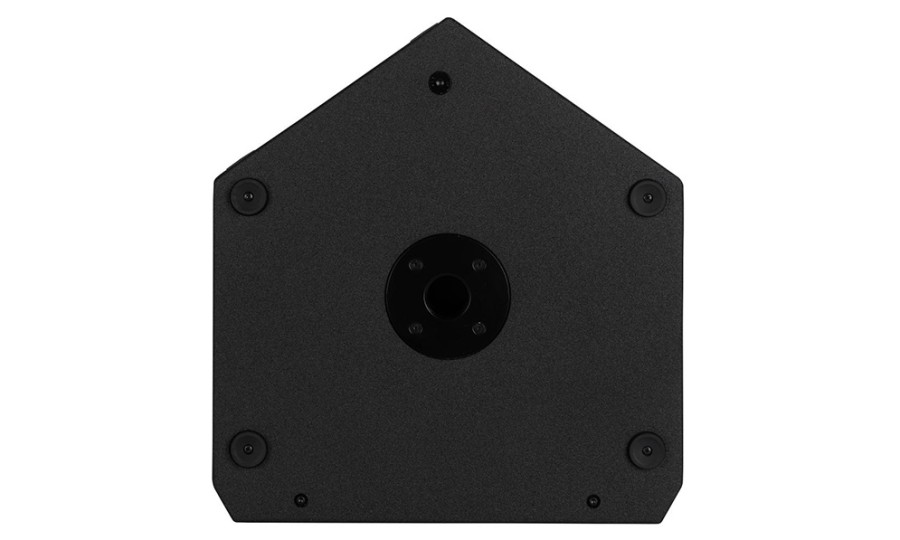

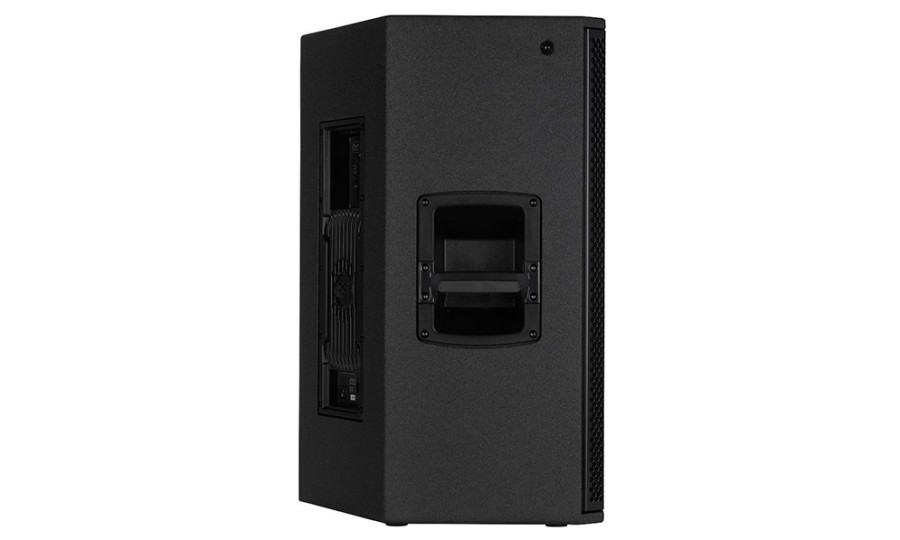

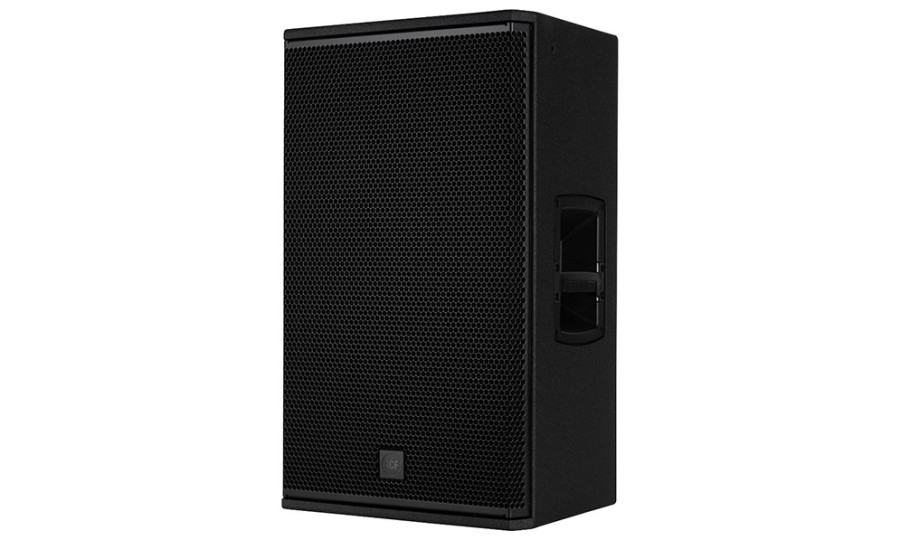

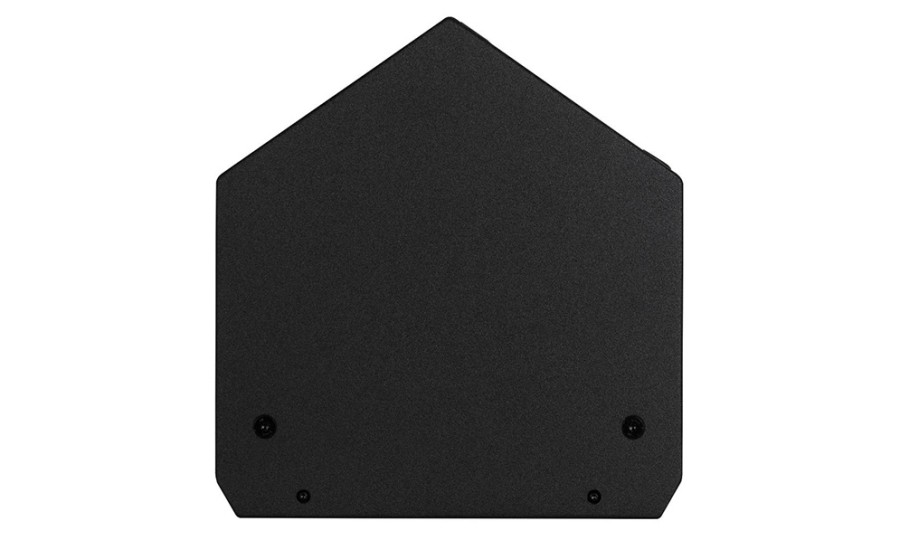

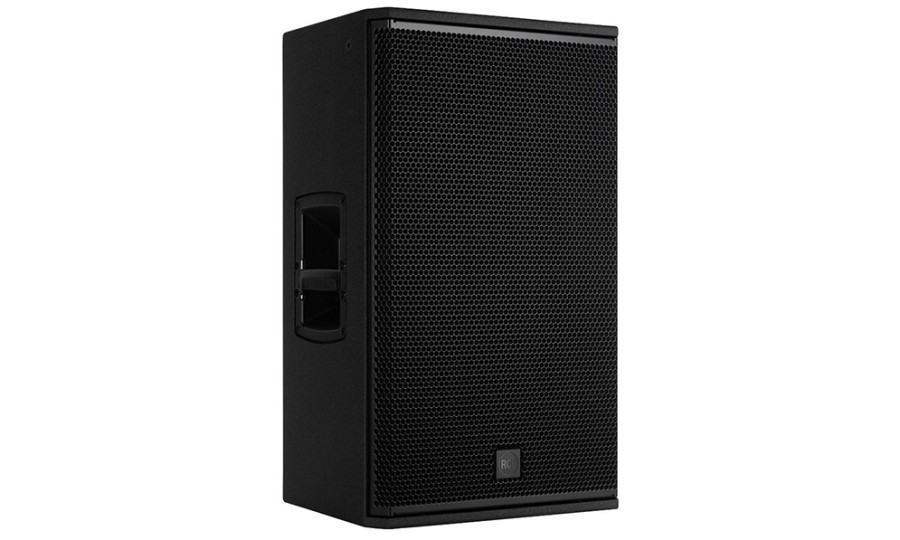

RCF NX 915-A

RCF NX 915-A Активна двулентова тонколона 15"

• Up to 131 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• 45-20000 Hz linear frequency response
• 1.75" Compression Driver
• 15" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management

Acoustical Specifications

Frequency Response: 45 Hz ÷ 20000 Hz

Max SPL @ 1m: 131 dB

Horizontal coverage angle: 100°

Vertical coverage angle: 60°

Transducers

Compression Driver: 1 x 1.0'', 1.75'' v.c

Woofer: 15'', 2.5'' v.c

Input/Output Section

Input signal: bal/unbal

Input connectors: XLR, Jack

Output connectors: XLR

Input sensitivity: -2 dBu/+4 dBu

Processor Section

Crossover Frequencies: 1600 Hz

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Linear, Boost, Stage, Volume

Power Section

Total Power: 2100 W Peak

High frequencies: 700 W Peak

Low frequencies: 1400 W Peak

Cooling: Convection

Connections: VDE

Standard Compliance

Safety agency: CE compliant

Physical Specifications

Cabinet/Case Material: Plywood

Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear

Handles: 1 x Each Side

Pole mount/Cap: Yes

Grille: Steel

Color: Black

Size

Height: 705 mm / 27.76 inches

Width: 420 mm / 16.54 inches

Depth: 451 mm / 17.76 inches

Weight: 24.1 kg / 53.13 lbs

Shipping Information

Package Height: 751 mm / 29.57 inches

Package Width: 506 mm / 19.92 inches

Package Depth: 474 mm / 18.66 inches

Package Weight: 26.6 kg / 58.64 lbs
