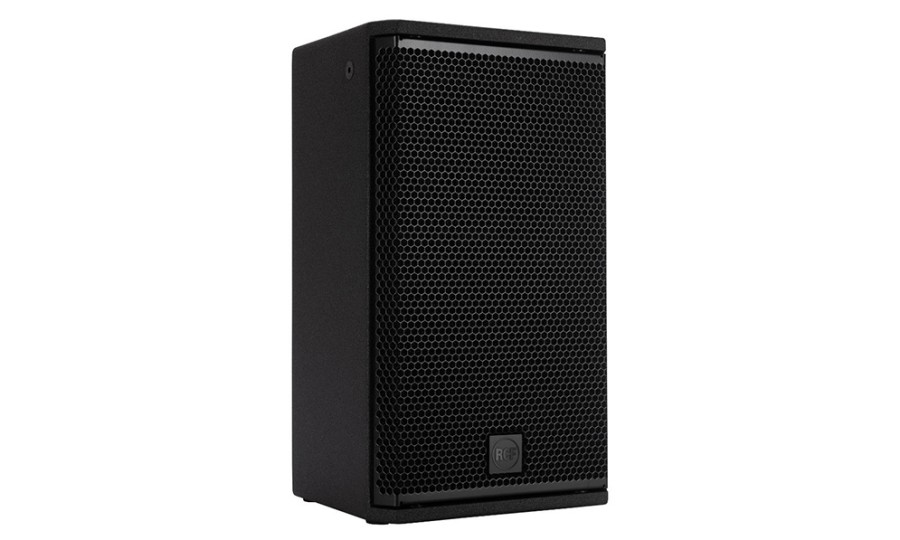

RCF NX 910-A

RCF NX 910-A Активна двулентова тонколона 10"

• Up to 130 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• 50-20000 Hz linear frequency response
• 1.75" Compression Driver
• 10" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management

Acoustical Specifications

Frequency Response: 50 Hz ÷ 20000 Hz

Max SPL @ 1m: 130 dB

Horizontal coverage angle: 100°

Vertical coverage angle: 60°

Transducers

Compression Driver: 1 x 1.0'', 1.75'' v.c

Woofer: 10'', 2.5'' v.c

Input/Output Section

Input signal: bal/unbal

Input connectors: XLR, Jack

Output connectors: XLR

Input sensitivity: -2 dBu/+4 dBu

Processor Section

Crossover Frequencies:1600 Hz

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Linear, Boost, Stage, Volume

Power Section

Total Power: 2100 W Peak

High frequencies: 700 W Peak

Low frequencies: 1400 W Peak

Cooling: Convection

Connections: VDE

Standard Compliance

Safety agency: CE compliant

Physical Specifications

Cabinet/Case Material: Plywood

Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear

Handles: 1 Top

Pole mount/Cap: Yes

Grille: Steel

Color: Black

Size

Height: 510 mm / 20.08 inches

Width: 295 mm / 11.61 inches

Depth: 333 mm / 13.11 inches

Weight: 16.4 kg / 36.16 lbs

Shipping Information

Package Height: 556 mm / 21.89 inches

Package Width: 388 mm / 15.28 inches

Package Depth: 348 mm / 13.7 inches

Package Weight: 18.1 kg / 39.9 lbs
