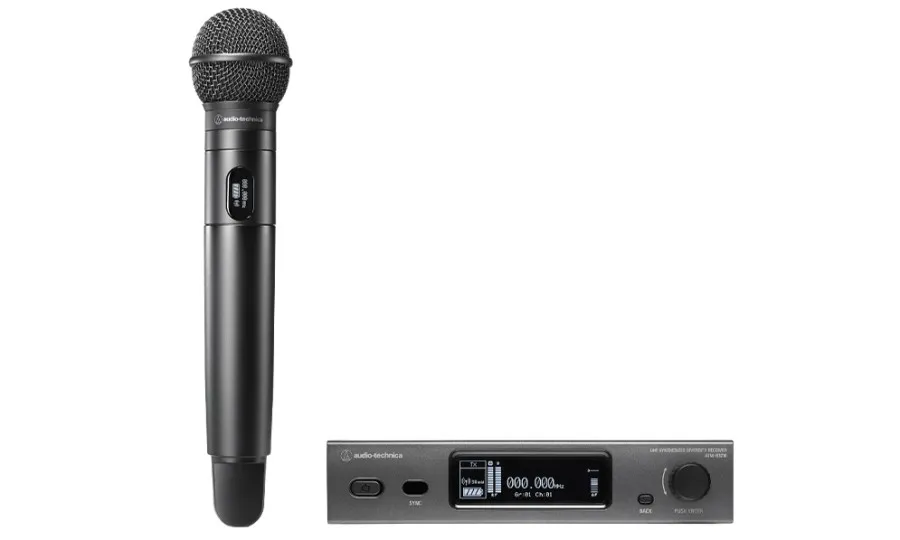

Audio-Technica ATW-3212/C510

Audio-Technica ATW-3212/C510
  • Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
  • Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
  • Minimum Frequency Step 25 kHz
  • Modulation Mode FM
  • Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
  • ATW-T3202: ±36 kHz (THD:10%)
  • Frequency Response ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element
  • Operating Range 100 m (328')
  • Open range environment with no interfering signals.
  • Total Harmonic Distortion <1.0% (at 1 kHz, ±17.5 kHz deviation)
  • Operating Temperature Range -5° C to +45° C (23° F to 113° F)
  • Simultaneous Use 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent

Handheld Transmitter

  • RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
  • Spurious Emissions Following Federal and National Regulations
  • Microphone Capsule Interchangable industry standard thread
  • Battery Type Two 1.5V AA, not included
  • Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
  • Dimensions ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
  • Net Weight ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries

Receiver

  • Receiving System True Diversity
  • Image Rejection 60 dB nominal
  • RF Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
  • Maximum Output Level XLR, balanced: +14 dBV
  • 6.3 mm (1/4"), unbalanced: +8 dBV
  • Antenna Input BNC-type, 50 ohms
  • Antenna Power 12 V DC, 160 mA (combined)
  • Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
  • Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H)
  • Weight 1100 g (38.8 oz), without accessories
  • Accessories Included Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters

Напишете мнение

Забележка: HTML не се потдържа!
Лош Добър
Audio-Technica ATW-3212/C510
  • Наличност: Изчерпан (Out of stock)
  • Модел: ATW-3212/C510
  • SKU: ATW-3212/C510
749.90€
99999 или повече 749.90€
