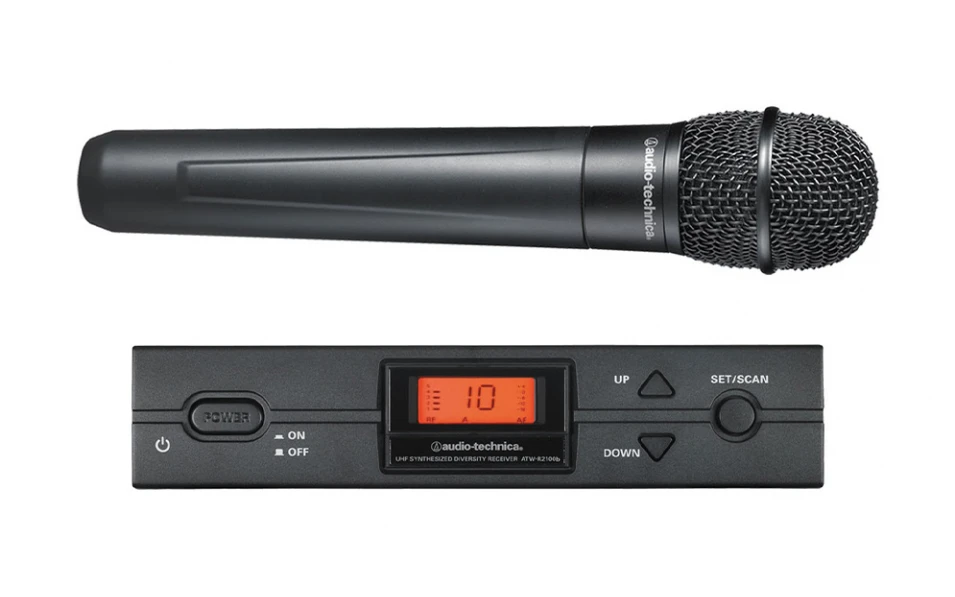

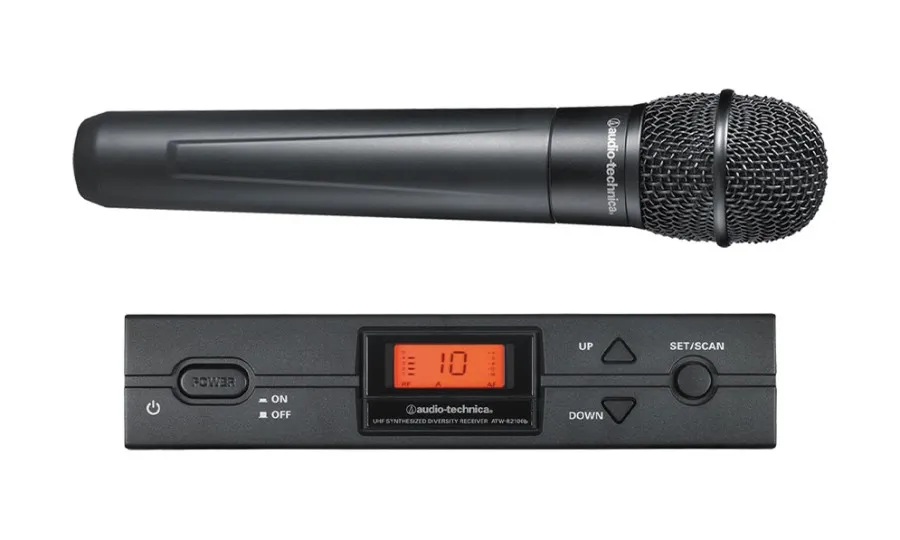

Audio-Technica ATW-2120B

Operating Frequencies UHF band

• 656.125 – 678.500 MHz (D Band)

• 854.900 – 864.900 MHz (F Band)
• 487.125 – 506.500 MHz (I Band)
• 606.500 – 631.000 MHz (U Band)

• Number Of Channels 10 total
• Frequency Stability ±0.005%, Phase Lock Loop frequency control
• Modulation Mode FM
• Frequency Response 100 Hz to 15,000 Hz
• Operating Range 100 m (300') typical
• Operating Temperature Range 41° F (5° C) to 113° F (45° C)

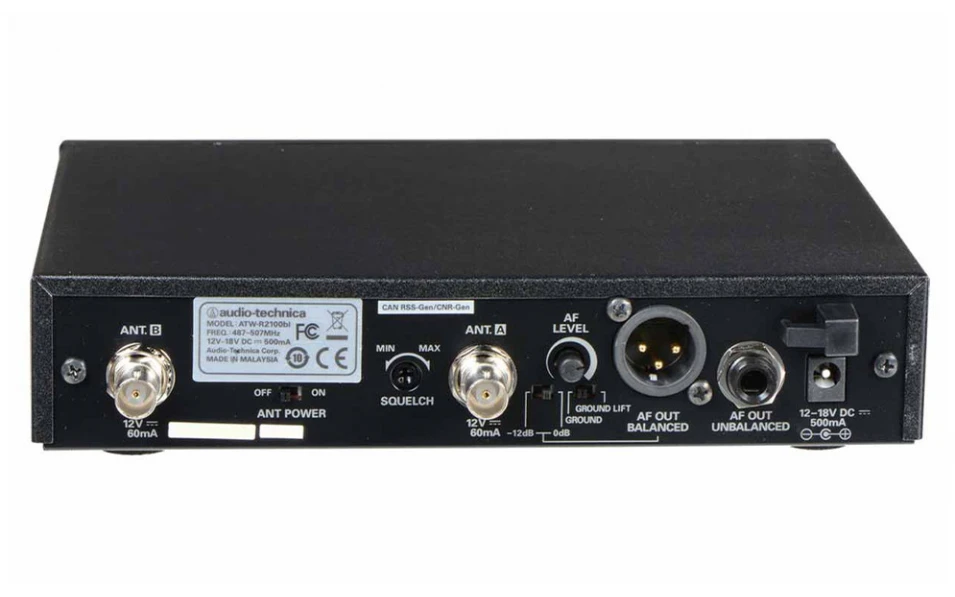

• Receiver
• Receiving System True Diversity
• Image Rejection 55 dB nominal, 50 dB minimum
• Signal-To-Noise Ratio >100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz
• Sensitivity 20dBuV (S/N 60dB at 5 kHz deviation, IEC-weighted)
• Total Harmonic Distortion < 1% (at 1 kHz, ±20 kHz deviation)
• Audio Output Attenuator (ATTN) Unbalanced: 25mV (100k ohms load), 1/4" phone jack
• Balanced: 50mV (Attenuator; 0dB)
• 12.5mV (Attenuator; -12dB) at 1 kHz ± 5kHz deviation, 100k ohm load, XLRM-type
• Antenna Input BNC-type 50 Ohms – Bias voltage 12V DC, 60mA each
• Dimensions 210 mm x 44 mm x 162.2 mm (W x H x D)
• Weight 1.0kg
• Accessories Included Two flexible UHF antennas, rack mount adapters, AC adapters
• Handheld Transmitter
• RF Power Output High: 30mW; Low: 10mW, nominal
• Spurious Emissions According to National Regulations
• Microphone Element Dynamic, unidirectional
• Battery Type Two 1.5V AA alkaline or rechargeable AA NiMH (not included)
• Current Consumption 150 mA typical
• Battery Life Approximately 9 hours (low), 7 hours (high)
• Dimensions 229 mm long – 53.5 mm maximum diameter
• Net Weight 221g
• Accessories Included AT8456a Quiet-Flex™ Stand Clamp
