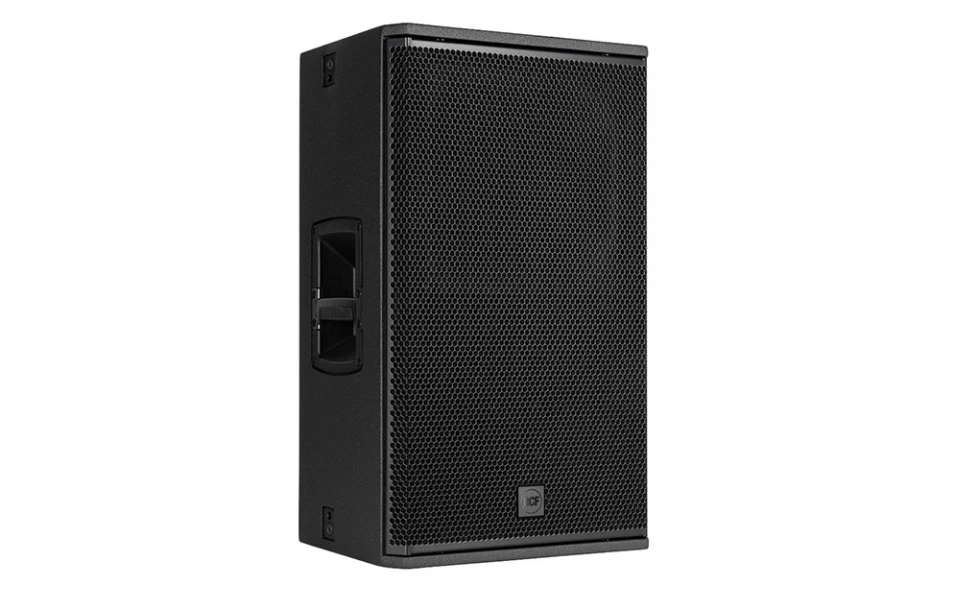

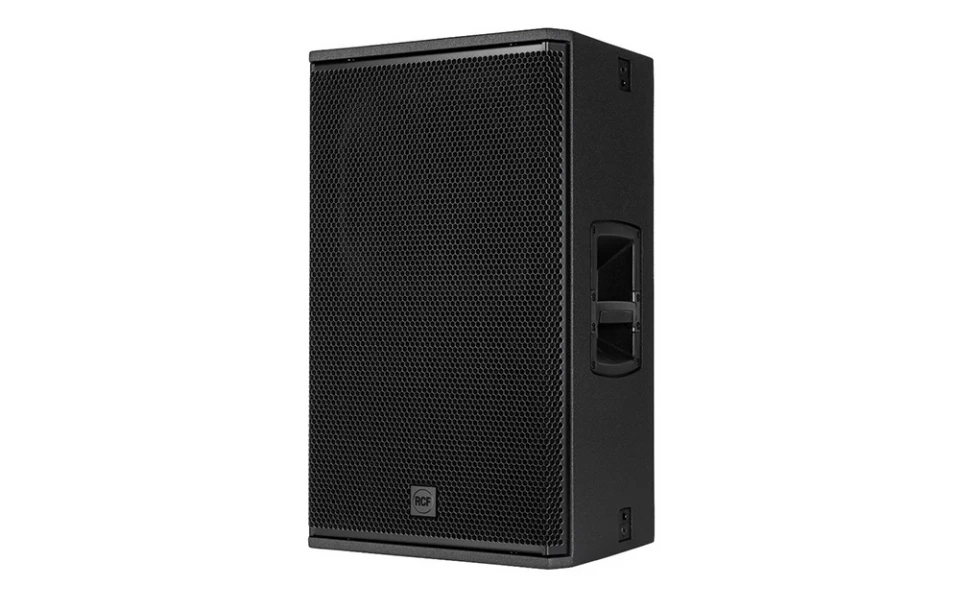

RCF NX 945-A

RCF NX 945-A Активна двулентова тонколона 15"

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 70°

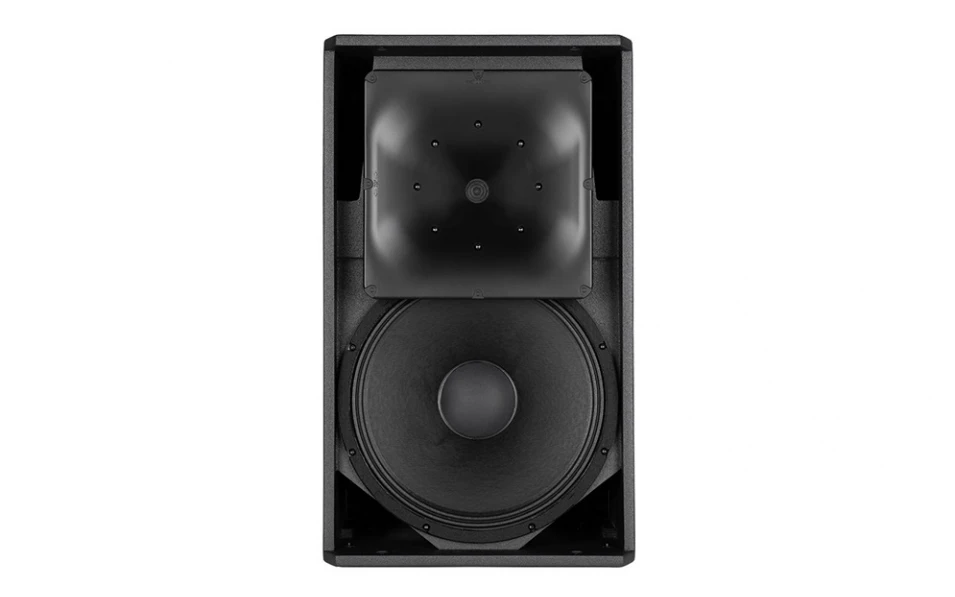

Transducers

Compression Driver: 1 x 1.4'' neo, 4.0'' v.c

Woofer: 15'' neo, 3.5'' v.c

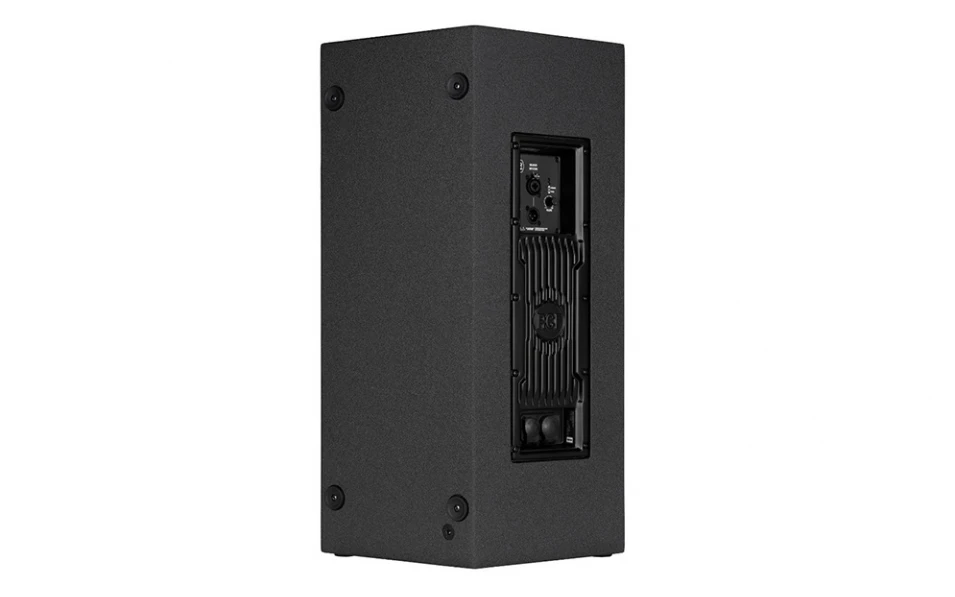

Input/Output Section

Input signal: bal/unbal

Input connectors: Combo XLR/Jack

Output connectors: XLR

Input sensitivity: -2 dBu/+4 dBu

Processor Section

Crossover Frequencies: 650Hz

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Linear, Boost, Stage, Volume

Power Section

Total Power: 2100 W Peak

High frequencies: 700 W Peak

Low frequencies: 1400 W Peak

Cooling: Convection

Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance

Safety agency: CE compliant

Physical Specifications

Cabinet/Case Material: Plywood

Hardware:

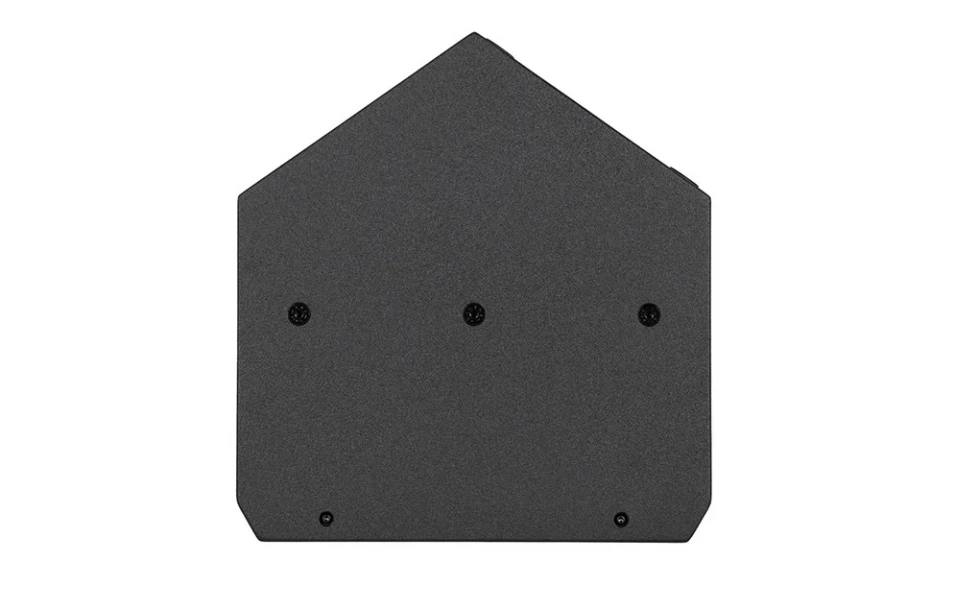

2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear

2 each side quick lock pin seat

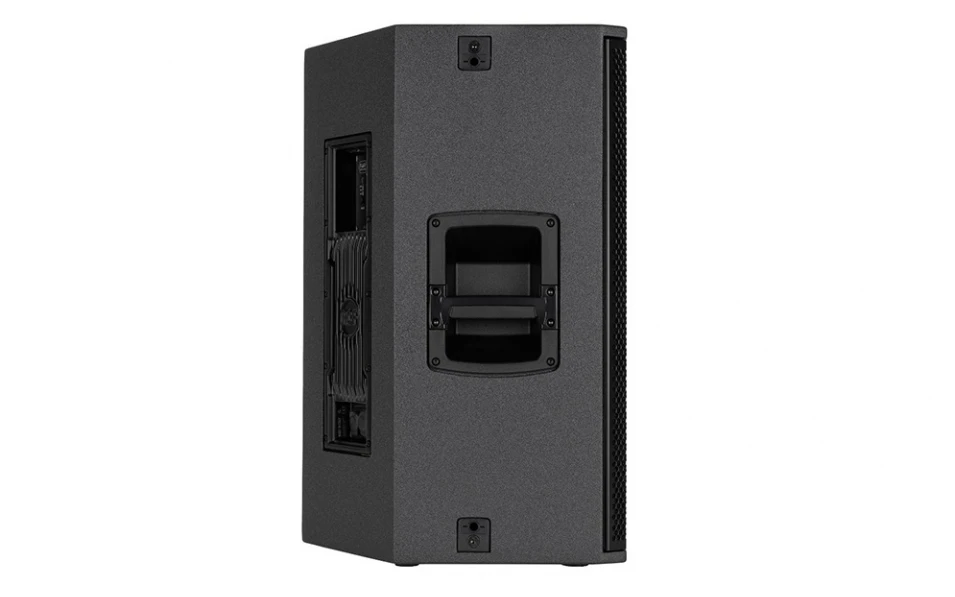

Handles: 1 x Side

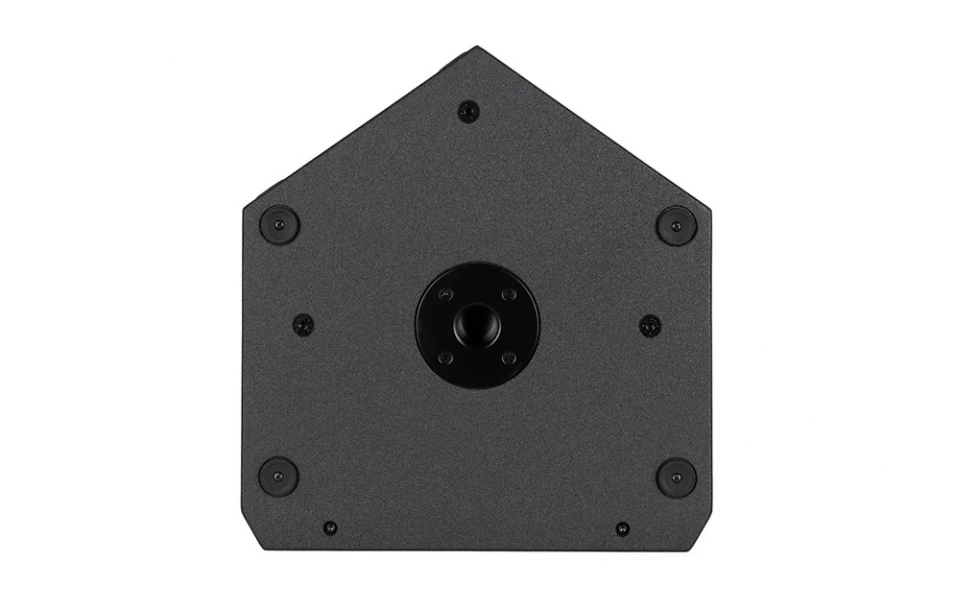

Pole mount/Cap: Yes

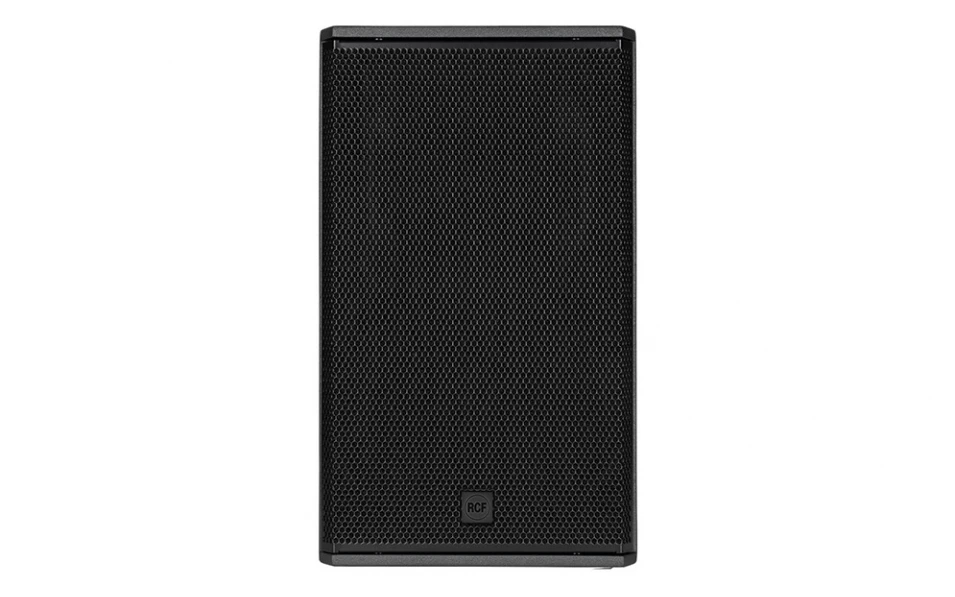

Grille: Steel

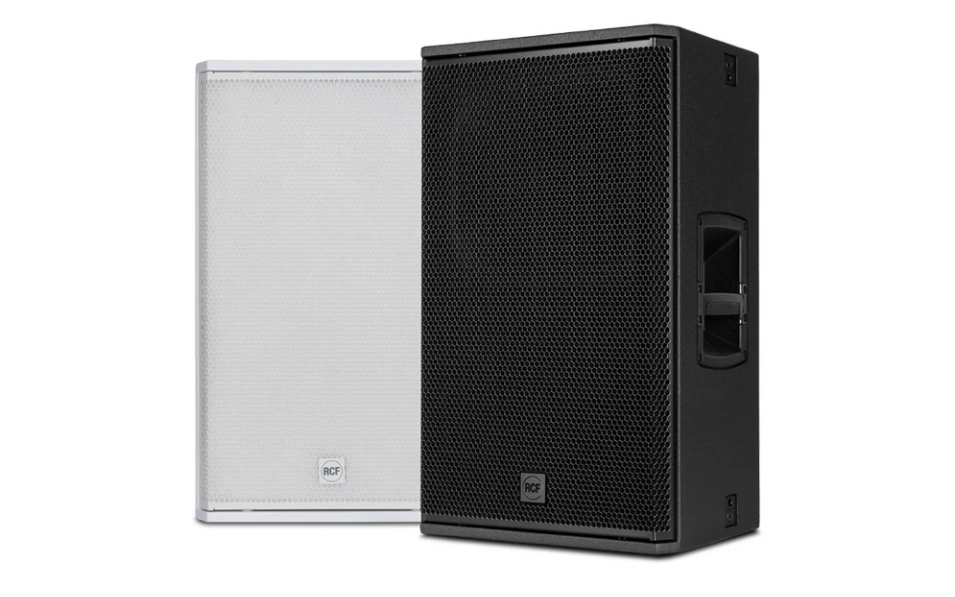

Colour: Black, White

Size

Height: 705 mm / 27.76 inches

Width: 420 mm / 16.54 inches

Depth: 451 mm / 17.76 inches

Weight: 27.3 kg / 60.19 lbs

Shipping Information

Package Height: 751 mm / 29.57 inches

Package Width: 506 mm / 19.92 inches

Package Depth: 474 mm / 18.66 inches

Package Weight: 31 kg / 68.34 lbs
