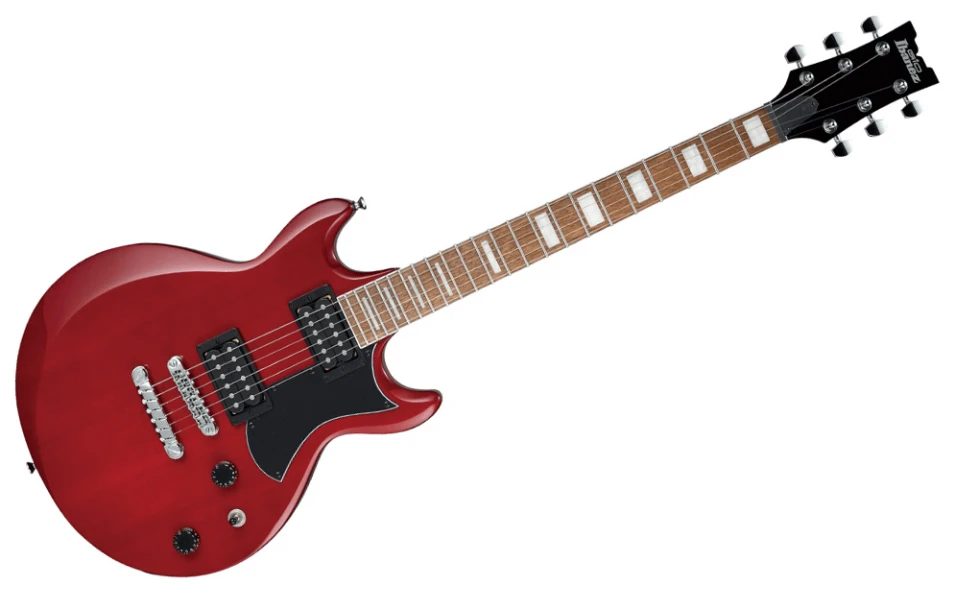

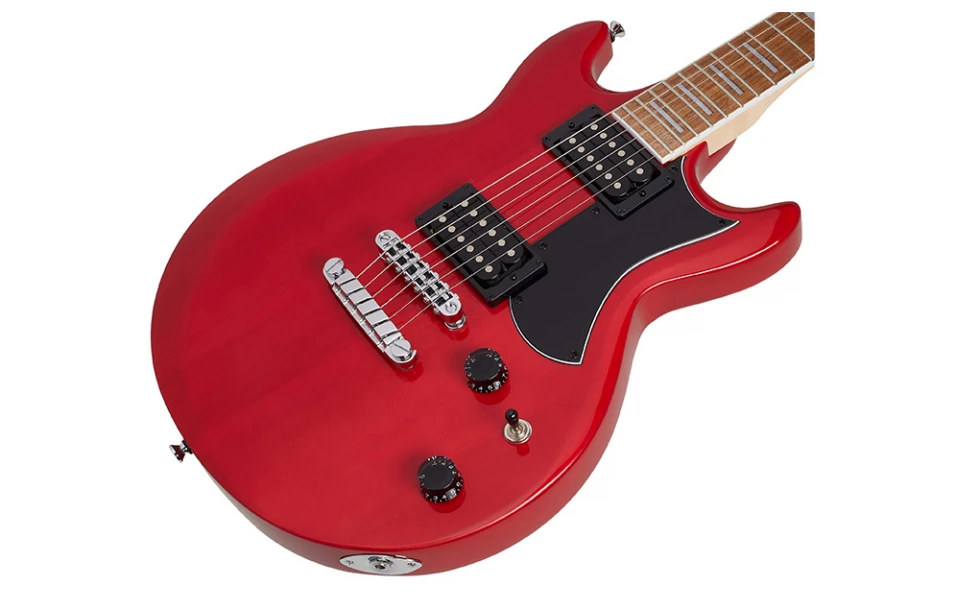

Ibanez GAX30 TCR

GAX30 е модел електрическа китара със solid body от серия AX, представен от Ibanez през 2018 г.

Характеристики:

• Model name: GAX30 (2018–2022)
• Year(s) offered: 2018–2022
• Sold in: Americas & Oceania / Asia & Africa / Europe / USA 2018–2021
• Made in: China
• Finish(es): Black Night (BKN) 2018–2019 / Mustard (MST) 2018 / Transparent Cherry (TCR)

Body

• Body type: Solid body
• Body material: 2018: Poplar 2019–2021: Basswood 2022: Poplar
• Neck joint: Bolt-on
• Bridge: 2018–2019: Full Tune III fixed 2020–2022: Gibraltar Performer fixe (10.5mm string spacing)
• Tailpiece: Full Tune III
• Pickguard: Black
• Knob style: Speed (black)
• Hardware color: Chrome

Neck

• Neck type: GAX
• Neck material: 1-piece maple
• Scale length: 628mm/ 24¾"
• Fingerboard material: 2018: Treated New Zealand pine w/ binding 2019–2022: Jatoba
• Fingerboard inlays: White acrylic block
• Frets: 22 / medium nickel silver
• Nut: Black plastic (43mm)
• Machine heads: Ibanez die-cast

Electronics/ Strings

• Pickup configuration: HH
• Bridge pickup: Ibanez Infinity R bridge (H) passive/ ceramic
• Neck pickup: Ibanez Infinity R neck (H) passive/ ceramic
• Controls: Master volume / master tone / 3-way toggle pickup selector
• Output jack: ¼" mono (side mounted w/ oval plate)
• String gauge (factory): .010/.013/.017/.026/.036/.046
• Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)
