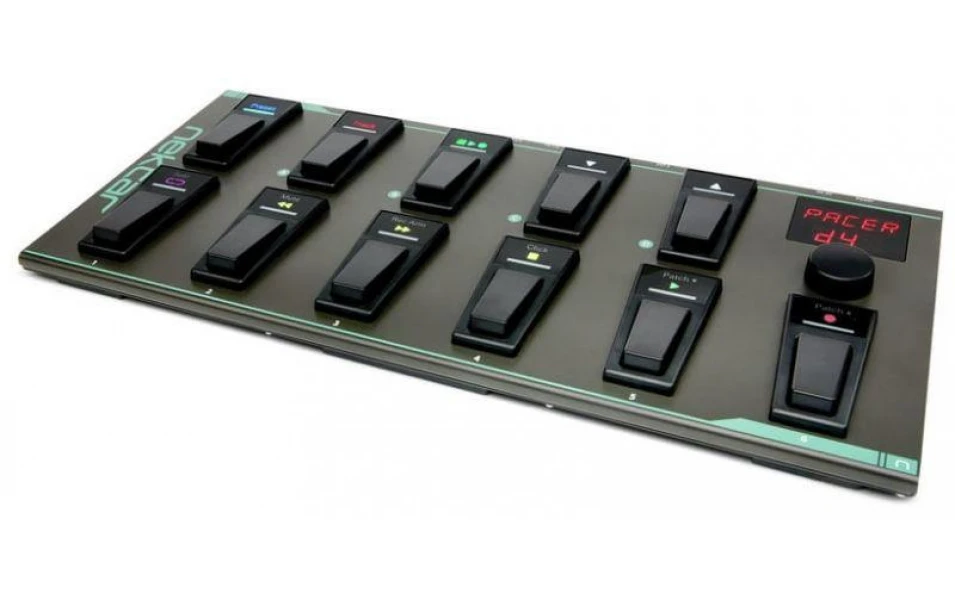

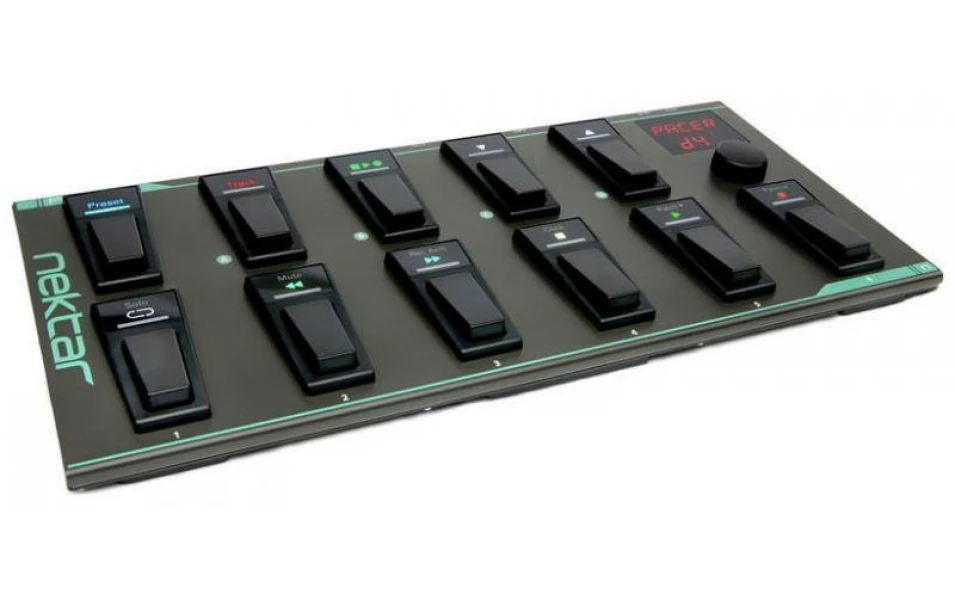

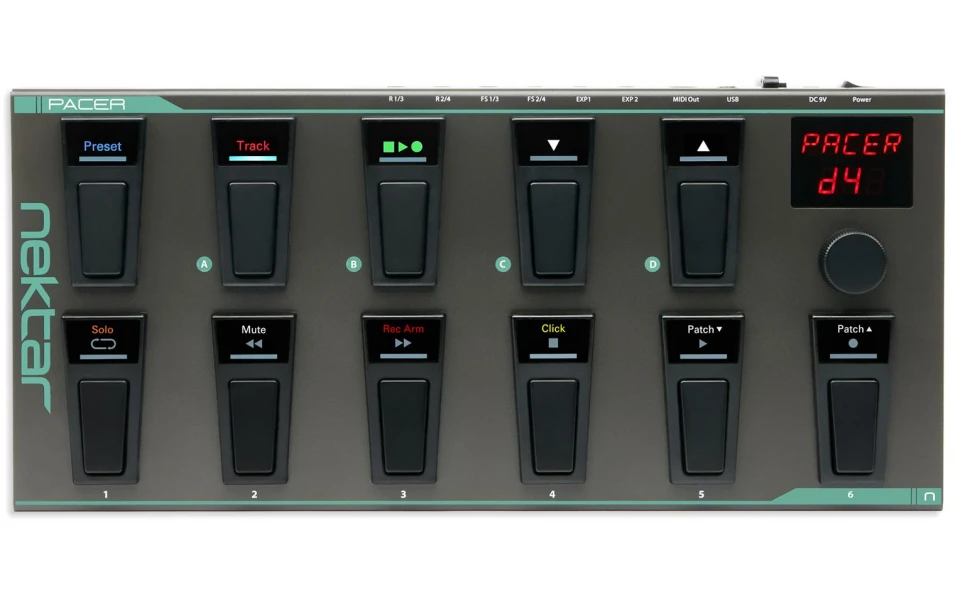

Midi контролер Nektar Pacer

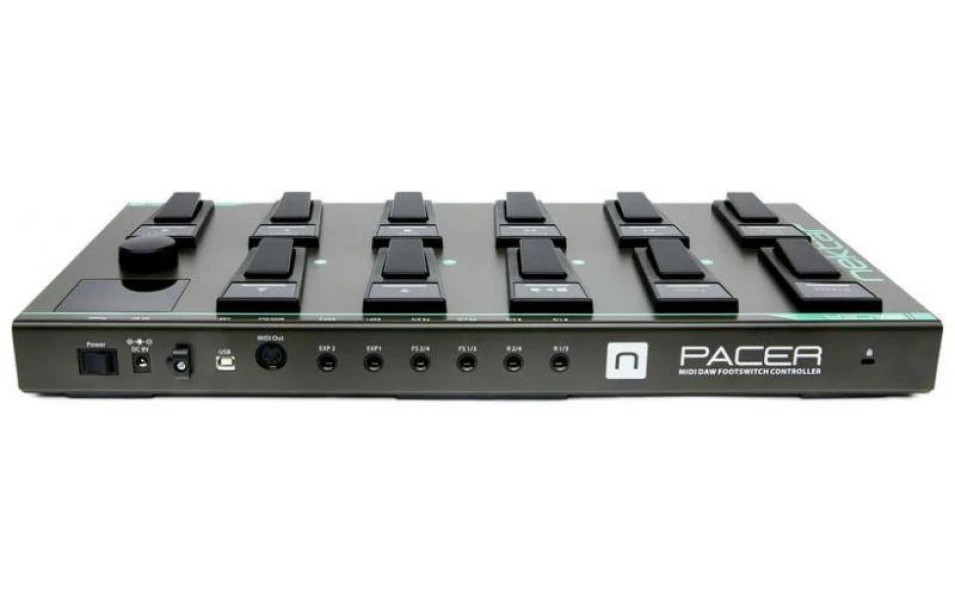

POWER

• PACER is powered via USB or a 9v 600mA center negative power supply (optional). A cable tie keeps everything in place.

MIDI OUT

• The MIDI Out jack can be used to connect to external MIDI equipment or as a USB MIDI interface.

EXPRESSION

• The EXP 1&2 1/4″ TRS jack sockets allow connection of standard expression pedals, such as our NX-P for real-time control.

EXT FS 1-4

• Connect two footswitch pedals to the 1/4″ TRS jack sockets or four footswitches using y-splitter cables.

RELAYS 1-4

• 4 relays on two 1/4″ TRS sockets for momentary or latching operation. Use for channel or FX switching on a non-MIDI amp.

• A1 – A4 Program change presets: For any MIDI compatible equipment including virtual systems such as Guitar Rig.
• A5 MIDI Notes: Send out MIDI notes E/F#/G/A/B/C
• A6 Relay 1–4: Simple setup for trying out the 4 relays. Pedal 5 and 6 switch relay behaviour.
• B1 Line6 Helix 1: Pedals 1-5, snapshot, set list, tuner and tap tempo.
• B2 Line6 Helix 2: Pedals 6-10, snapshot, set list, tuner and tap tempo.
• B3 Line6 Pod HD: Control Pod HD pedals 1-8, tuner and tap tempo.
• B4 Line6 Pod 2.0/XT: Turn individual effects on and off on Pod XT.
• B5 Fractal Audio AxeFX 1: Ind. page 1 FX, tuner and tap tempo.
• B6 Fractal Audio AxeFX 2: Ind. Page 2 FX, tuner and tap tempo.
• C1 Avid Eleven Rack: Ind. FX on/off, tuner and tap tempo.
• C2 Kemper Profiler: Ind. FX on/off, tuner and tap tempo.
• C3 Line6 PodHD/Helix Looper: Control Looper functions.
• C4 Fractal Audio AxeFX Looper: Control Looper functions.
• C5 Elektron Octatrack Pickup Machine: Navigate tracks and control Looper.
• C6 Electro Harmonix 45000 Looper: Navigate tracks and control Looper.
• D1 Hughes & Kettner GrandMeister: Channels, Gate, and Boost plus FX switching and amounts via exp. pedal.
• D2 LED colors: Switches 1–6 assigned to MIDI CC each with unique color.
• D3 Keyboard tool box: Switches & expression pedals transmit sustain, volume and expression.
• D4 GM CCs: FX control for General MIDI Spec devices. Can be used to control soft- or hardware with MIDI learn functions.
• D5 MIDI Machine Control: Transport on MMC compatible DAWs.
• D6 Step Sequence demonstration: Switches 1-6 configures as 6-step sequences.
