BOYA BOYALINK

Transmitter & Receiver

• Transmission Type 2.4GHz digital frequency
• Modulation Digital modulation
• Polar Pattern Omnidirectional
• Antenna Ceramic antenna
• Operating Range (Without Obstacle) Up to 100m (This value is tested in the open areaswithout any interferences according to FCC standard.)
• RF Output Power <10mw
• Distortion <0.01%
• Frequency Response 20Hz-20kHz
• Sampling Rate 48kHz
• Bit Rate 16bit
• Signal-to-Noise Ratio >85dB
• Sensitivity -42dB
• Audio Input TX: In-built microphone capsule
• Audio Output RX: 3.5mm TRS analog output, USB-C and iOS Lightning digital output
• Battery Voltagel Capacity TX:3.7V/95mAh; RX: 3.7V/120mAh
• Power Requirements ln-built lithium-ion battery/Charging contacts/ USB-C charging port
• ln-built Battery Life TX:Approx.10 hours; RX:Approx.6 hours
• Weight TX: 12g; RX:15g(with an adapter)
• Dimensions TX:59x16.2x12.8mm; RX:61x18.2x12.8mm
• Operating Temperature o℃ to +50℃
• Storage Temperature -10℃ to +50℃

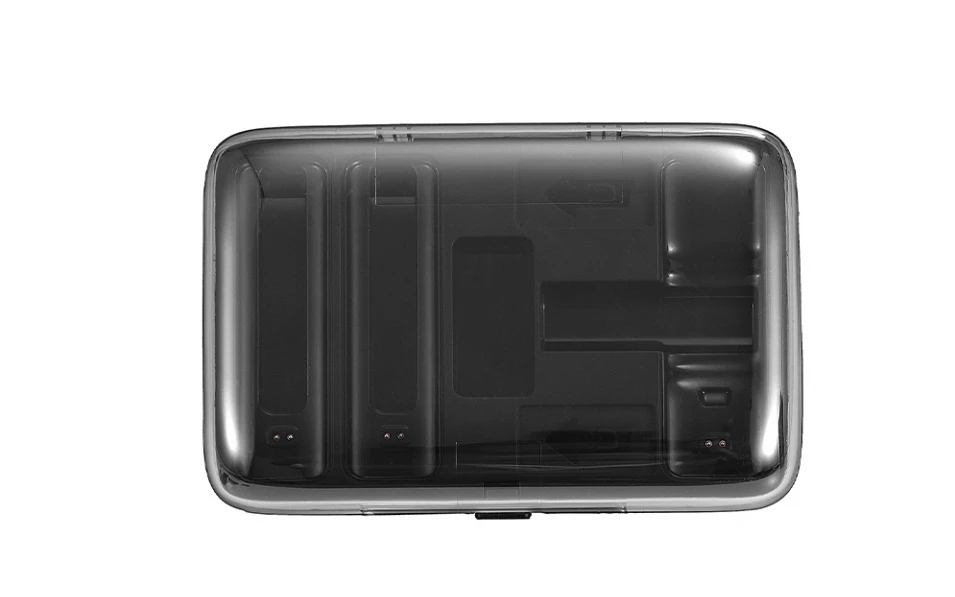

Charging Case

• Battery Capacity 1000mAh
• Charging Time Approx.1.5 hours
• Charging Connector USB-C
• Times for Charging Microphone 2 times (2*TX+1*RX)
• Weight 99g
• Dimensions 112x73x33 mm
• Operating Temperature 0℃ to +50℃
• Storage Temperature -10℃ to +50℃

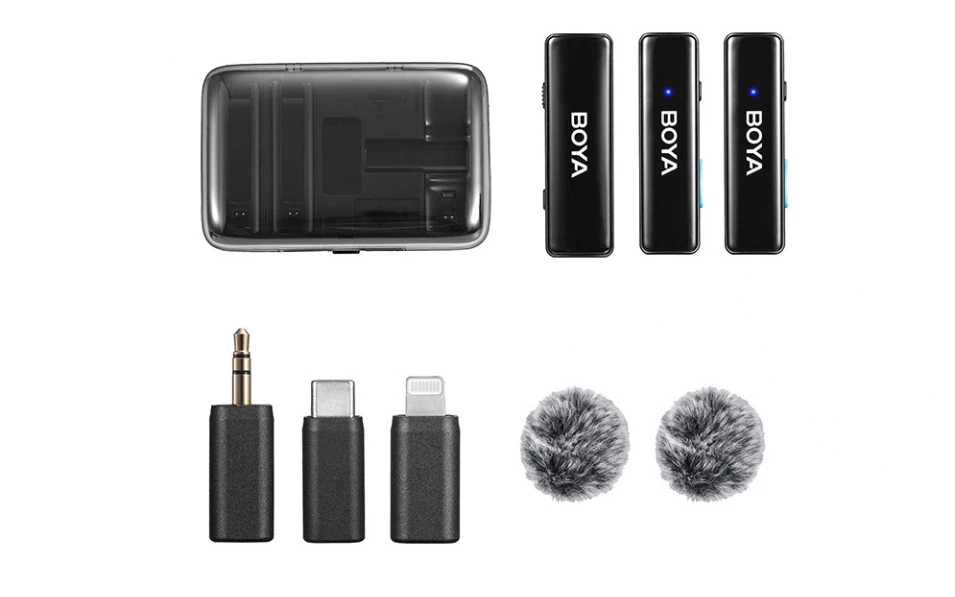

Packing List

• BOYALINK Transmitter *2
• BOYALINK Receiver *1
• USB-A to USB-C Cable *1
• MFi Certified Lightning Adapter *1
• 3.5mm TRS Adapter *1
• USB-C Adapter *1
• Fur Windshield *2
• Charging Case *1
• Carrying Pouch *1
